| Plastics Testing Equipments : |
|
| |
|
 ---------------------------------------------------------------------- |
-------------------------------------------------- |
| |
|

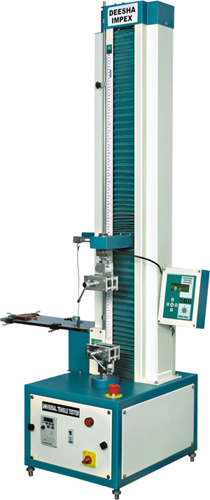

| UNIVERSAL TENSILE TESTING MACHINE |
| |
- This Instrument is in according to ASTM D 638 and can supply
accordance with BS, DIN,ISO, IS (Indian Standard) or according to
customer’s required specification.
- Mechanical Structure on Single Screw Base supported tie-bar with linear
motion bearing to carry load.
- Machine capacity according to customer requirement.
- Motor & Gear Box : Motor Coupled with Gear box.
(Make : Bonfiglioli). Oil Free Gear box is used to avoid maintenance problem.
- Speed range from 10 to 500mm/min, speed selectable directly from
the computer.
- Microprocessor based digital display for load and extension.
- Load accuracy dependable of the load cell. Accuracy 1% of the full scale
value of load cell.
- Cross head travel : up to 800mm.
- Extension display 0.01mm with 0.5% accuracy of travel.
- Live interfacing on to computer during the test.
- Unit conversion facility in load and extension. (i.e N-kg-lbf and in extension
mm-cm-inch).
- Stress Vs. Strain graph also available after completion of the test.
|
|
 |
 Download Brochure |
|
| |
|
| ------------------------------------------------------------------------------------------------ |
--------------------------- |
| |
|
| Range Of Universal Tensile Testing M/C. |
|
| |
- User conduct shear, puncture, tear, bonding etc. test
- PC communication via RS-485 converter for fast data collecting and
every moment data collection to analyze product at each and every point.
- User friendly software
- Easy installation of window based software in computer
- Over load and over elongation safety features is provided through software and PLC
- Auto graph scales on X axis as well as Y axis
- Software presents test results in tabular and graphical formats
- Configure the test using a standard test setup template which is pre-formatted
for each type of test
- Report generation is through PLC via RS-232 to RS-485 converter
- Pre define profile feed to switch over from one test method to another test method
|
| |
| |
| Download Brochure |
|
 |
| |
 |
| |
|
| Range Of Universal Tensile Testing M/C. |
| |
|
| ------------------------------------------------------------------------------------------------ |
--------------------------- |
| |
|
| Grips For Universal Tensile Tester |
|
| |
